MagTrack (Tilt) Swing Arm | Multi-Jet

Waterblasting up to 3000 Bar

The MagTrack (Tilt) Swing Arm Multi-Jet can be installed on our 4-wheel magnetic carrier by one person in under 30 minutes. It is ideal for water blasting and industrial washing up to 3000 bar.

Operation

We offer two versions of the (Tilt) Swing Arm Multi-Jet: the fixed swing arm and one operated by a remote-controlled actuator. With the actuator, the distance from the cleaning head to the surface is adjustable while driving. Automatic drive mode allows control of swing speed, drive speed, and step size. It operates with 1, 2, or 3 nozzles, adjustable in height, angle, and pitch.

Clamp System

Thanks to the universal clamp system, a wide variety of nozzles can be mounted, such as MONO-JET or Masterjet nozzles. This gives operators maximum flexibility to tailor the tool to the specific cleaning job.

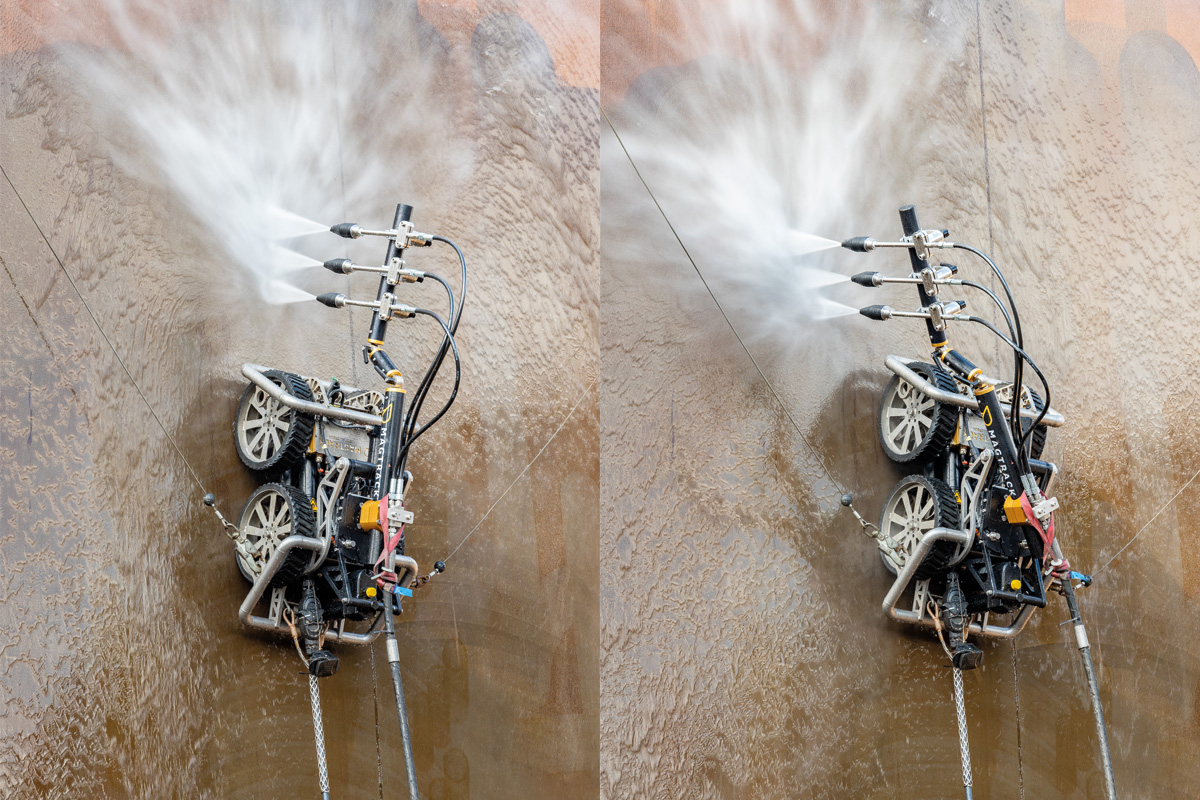

Application

Ideal for waterblasting and industrial washing up to 3000 bar when dirt collection isn’t needed. It’s a cost-effective alternative to “closed” waterblasting since no vacuum pump is required.

Features

• Optional tilt function by electric actuator, remote operated
• Universal clamp system allows mounting of most nozzle types, e.g., MONO-JET or Masterjet
• Easy to fix and adjust nozzle holders for adjusting pitch and angle
• Up to 3 nozzles
• 2 joints for height and angle adjustment of nozzles
• ATEX Zone II certified
